Biometric Access Control Terminals

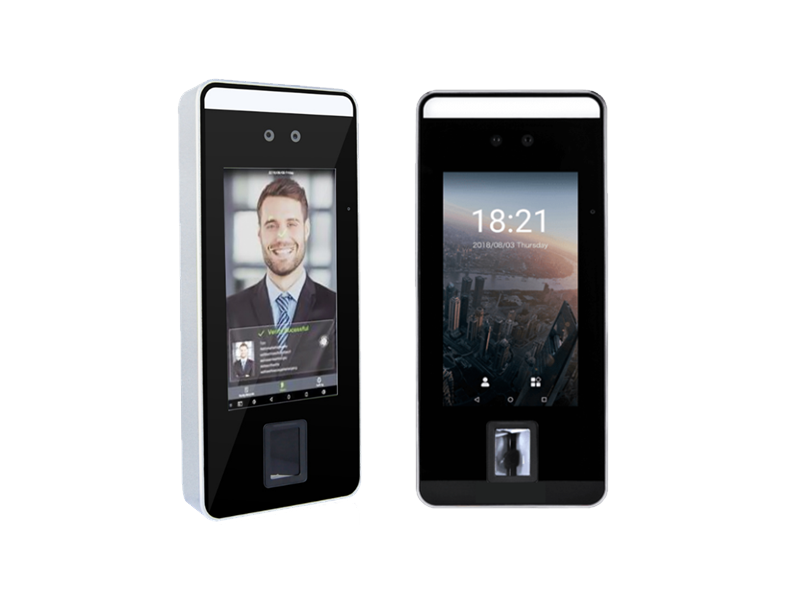

Facepro5-P

Face Recognition Terminal

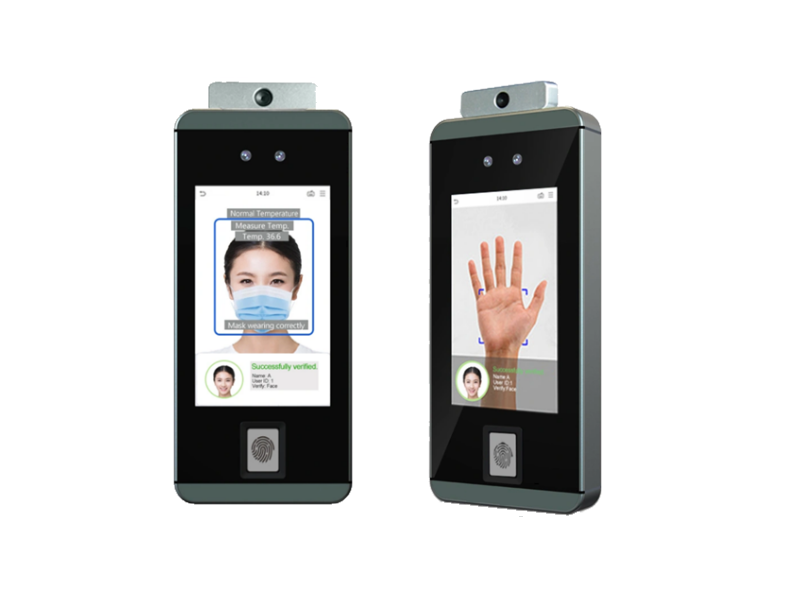

Facepro5-TD

Face Recognition Terminal with Temperature Detection

The Facepro5 series consists of high-speed biometric access control terminals. They support facial, fingerprint, ID+PIN and palm print verification with large capacity and speedy recognition. A RFID card (EM card or Mifare card) reader can optionally be added. In addition, mask detection can be enabled and the Facepro5-TD model supports temperature measurement.

  • Visible Light Facial Recognition
  • Distance: 0.3 to 2 meters
  • Anti-spoofing algorithm against print attack (laser, color and B/W photos), video attack and 3D mask attack
  • Multiple verification methods: Face / Palm/ Fingerprint / Card/ ID + PIN
  • Built in 125kHz card reader, Mifare reader optional
  • Supplement light with adjustable brightness
  • 6,000 face and fingerprint templates capacity
  • Attendance & Access Control functions
  • Includes software for management and reporting

Specifications

Face Template Capacity 6,000
Palm Template Capacity 3,000
Card Capacity 10,000
Transactions 200,000
Standard Functions ADMS, T9 Input, Camera, 9-digit User ID, Access Levels, Groups,Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verification Modes, Mask Detection
Facepro5-TD: Temperature Measurement Module
Operating System Linux
Communication TCP/IP, WiFi, Wiegand input / output, RS485
Hardware Dual Core CPU; 512MB RAM / 8G Flash; 2MP WDR Low Light Camera; Adjustable LED Supplement Lighting
Face/Fingerprint/Palm Recognition Speed <1 second
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Power Supply 12V 3A
Working Humidity 10% to 90%
Working Temperature -10°C - 45°C
Dimensions (W*H*D) FacePro5-P: 92 * 202.93 * 21.5 (mm)  FacePro5-TD: 92 * 220 * 22.5 (mm)

BioAccess Software

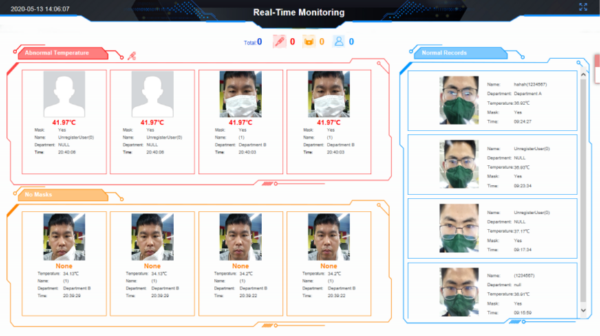

MASK & TEMPERATURE MONITORING

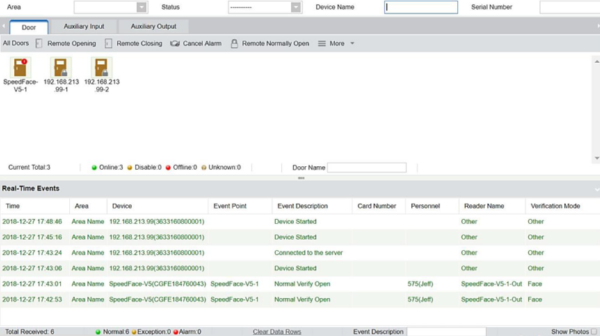

ACCESS CONTROL REAL TIME MONITORING

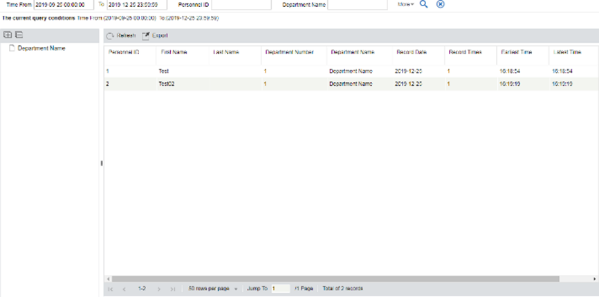

ATTENDANCE REPORTS

BioAccess is a web based management platform that provides full featured functionality including: User Management, Access Control, Attendance Management, Video Surveillance, Temperature Detection and Management

Access Control

  • Automatic alarm notification
  • Anti-Passback
  • Door status real-time monitoring
  • 255 Time Zones – Define different access timings for different days of the week and public holidays
  • Holiday Management
  • Remote Lock/Unlock
  • Schedule export of transaction records and email to specified addresses

Time & Attendance

  • Flexible shift scheduling
  • Supports multiple devices acting as attendance points
  • Schedule attendance report to email to administrator

Mask & Temperature Monitoring

  • Only allow access if user is wearing a mask and has a temperature below the defined temperature threshold
  • Export temperature/mask logs
  • Include temperature in attendance reports

Video Management System

  • Reliable Video Management System with real-time view, playback, recording, etc
  • Compatible with ONVIF devices
